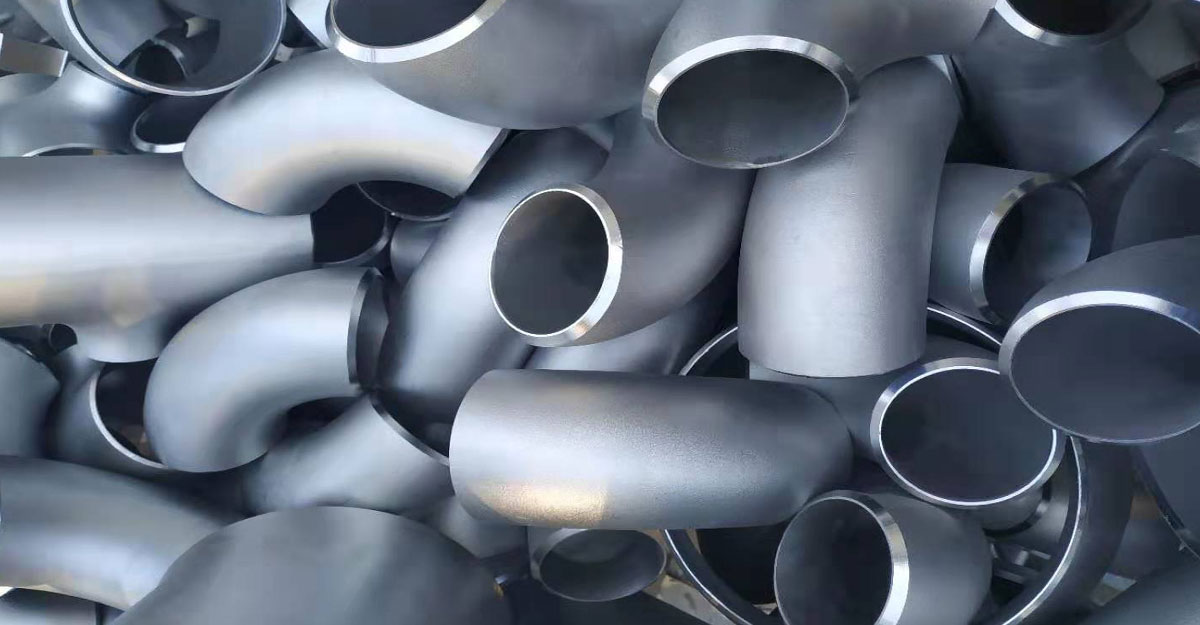

Butt-Weld Fittings
Smooth flow, strong weld joints, and long service life.
Butt-weld fittings are designed to provide a continuous and smooth flow path, ensuring high structural integrity and long-term performance. These fittings are widely used in high-pressure and high-temperature applications across oil & gas, petrochemical, power, and process industries.
Butt-Weld Fittings Specifications
| Fitting Type | Size Range | Schedule | Standard | Material |
|---|---|---|---|---|
| Elbows (90° / 45°) | ½″ – 48″ | Sch 10 – Sch 160 | ASME B16.9 | Carbon / Stainless Steel |
| Tees & Reducers | ½″ – 48″ | Sch 10 – Sch 160 | ASME B16.9 | Carbon / Stainless Steel |
Material Standards & Grades
| Material | Standard | Grades |
|---|---|---|
| Carbon Steel | ASTM A234 | WPB, WPC, WP1, WP5, WP9, WP11, WP22 |
| Stainless Steel | ASTM A403 | WP304, WP304L, WP316, WP316L, WP321 |

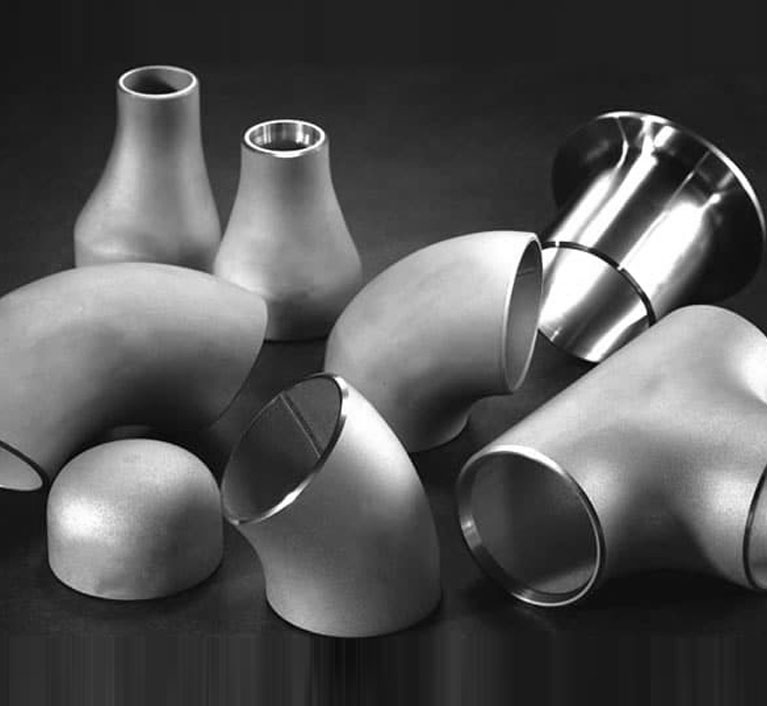

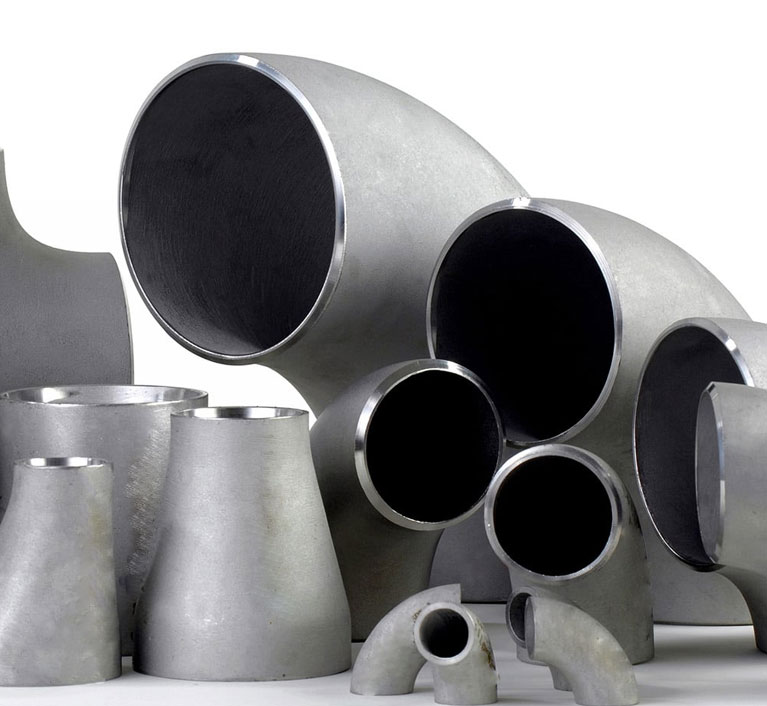

Butt-Weld Fittings Range
Elbows | Tees | Reducers
ASME B16.9 Certified
- 90° Elbow (BW) & 45° Elbow (BW)
- Equal Tee (BW) & Reducing Tee (BW)
- Concentric Reducer (Con Red)
- Eccentric Reducer (Ecc Red)
- ASME B16.9 / ASTM A234 / ASTM A403
- Strong Weld Joints & Smooth Flow Design
Features of Butt-Weld Fittings
- Strong Weld Joints & High Structural Integrity
- Smooth Flow Path with Minimal Pressure Loss
- Compliance with ASME B16.9 Standards
-
Precision Manufacturing &
Dimensional Accuracy - Wide Range of Sizes, Schedules & Materials
-
Suitable for High Pressure &
High Temperature Applications
